Epoxy Bonding · DCM Shriram · 5.5 kg kit

Bondone Bristle Grip A — the low-viscosity epoxy that keeps brush ferrules locked.

Two-component modified epoxy bonding system from DCM Shriram's Bondone range. The 100:10 mix ratio and 300-500 mPa·s viscosity penetrate deep into bristle bundles, so the ferrule stays locked through years of solvent exposure and bending. It also bonds metal-to-metal and metal-to-non-metal with a thin, solvent-resistant joint. As of August 2026, the 5.5 kg kit (5 kg resin + 0.5 kg hardener) is ₹2,537 from our Ghaziabad warehouse. Larger 33 kg packs available on request.

Order via WhatsApp View Pricing
Same-day NCR GST Invoice PAN India Shipping DCM Shriram TDS
spec-sheet · bondone-bristle-grip-a

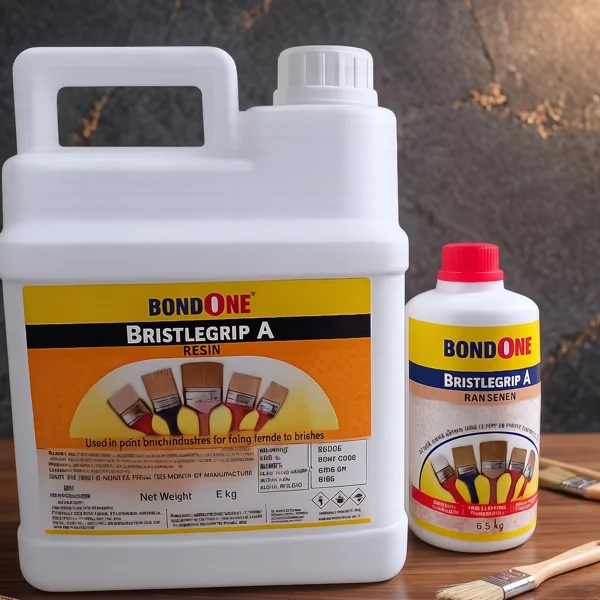

Bondone Bristle Grip A 5.5 kg epoxy bonding system kit by DCM Shriram
Bondone Bristle Grip A
Low-viscosity epoxy bonding system
BATCH · AUG 2026 INCL. GST DISPATCH TODAY
Mix Ratio100:10 Pot Life25-35 min Viscosity300-500 mPa·s Bond60 kg/cm²
5.5 kg · 33 kg on request
100:10 by weight
25–35 min
300–500 mPa·s
Min 60 kg/cm²
₹2,537
incl. GST · dispatched today Order on WhatsApp →
GST Invoice with every order TDS on file Authorised Bondone Distributor Same-day NCR dispatch PAN India shipping
02Specs

Key Technical Data

All values from the official Bondone product documentation by Hindusthan Speciality Chemicals Limited.

Mix Ratio

100:10

Resin : hardener by weight

100parts resin10parts hardener

Pot Life

25–35 min

At 25°C · 100 g mass

20 minpractical limit7 daysfull strength

Viscosity

300–500

mPa·s at 25°C · low viscosity

650–850std Bristle Grip0.1–0.2 mmbond line

Bond Strength

60 kg/cm²

Min at 25°C after 24 hrs

80std Bristle Grip12 moshelf life
03Full Data

Complete Specifications from TDS

Bondone Bristle Grip A – TDS

DCM Shriram, Bondone range · PDF · downloadable

PDF
Property Value Notes
Mix ratio100:10Resin : hardener by weight
Pot life25–35 minAt 25°C · 100 g mass
Mixed viscosity300–500 mPa·sAt 25°C — low viscosity grade
Bond strength60 kg/cm² minAt 25°C after 24 hrs
Full strength7 daysSolvent resistance develops over cure
Shelf life12 monthsIn sealed original containers

TDS and MSDS available on request with every order.

04Applications

Where Bristle Grip A Earns Its Place

Bristle Grip A is a low-viscosity epoxy optimised for brush manufacturing and precision bonding. Three use cases cover almost every enquiry we take.

Paint & industrial brush manufacturing

Ferrule-to-bristle fixing for paint brushes, wire brushes, and cleaning brushes where bond failure is not an option.

Precision metal assembly

Small metal parts, fixtures, and assemblies bonded with a thin 0.1-0.2 mm solvent-resistant layer at min 60 kg/cm².

Dissimilar substrate bonding

Metal to plastics, wood, or ceramics — the low viscosity wets both surfaces thoroughly for maximum adhesion across substrates.

06Quick Answer

Straight Answers

Quick answer: Bondone Bristle Grip A is a 100:10 low-viscosity epoxy for brush ferrule fixing and metal bonding, ₹2,537 for 5.5 kg.

How much does Bondone Bristle Grip A cost?

₹2,537 per 5.5 kg kit (₹461 per kg) includes 5 kg resin + 0.5 kg hardener in the correct 100:10 ratio. PAN India shipping from our Ghaziabad warehouse, and 33 kg bulk packs available on request — WhatsApp for the current bulk rate and stock position.

What is the mix ratio of Bristle Grip A?

100:10 by weight (resin : hardener). Use a digital scale — the low hardener content means small errors change the cure. Pot life is 25-35 minutes at 25°C, so mix only what you can apply within 20 minutes in hot conditions.

How is Bristle Grip A different from regular Bristle Grip?

Bristle Grip A has a lower viscosity (300-500 mPa·s vs 650-850 mPa·s), so it penetrates deeper into bristle bundles and mixes more easily. It trades a slightly shorter pot life (25-35 vs 40-55 minutes) and lower bond strength (60 vs 80 kg/cm²) for that penetration.

07Decide

Bristle Grip A vs Regular Bristle Grip — Which to Order

If you want to… Buy this Why Price
Penetrate deep into bristle bundlesBristle Grip A300–500 mPa·s wets every bristle₹2,537 / 5.5 kg
Bond metal parts with a thin layerBristle Grip A0.1–0.2 mm bond line, 60 kg/cm² min₹2,537 / 5.5 kg
Longer working time on large batchesRegular Bristle Grip40–55 min pot lifeWhatsApp for price

In 8+ years of supplying epoxy to brush manufacturers and engineering workshops across India, we process 1000+ orders every month — Bristle Grip A is the most reordered brush-bonding grade from our Ghaziabad warehouse.

08FAQ

Bondone Bristle Grip A Questions — Answered

What is Bondone Bristle Grip A used for?

Bondone Bristle Grip A is a low-viscosity epoxy bonding system with two primary applications. First, in paint brush manufacturing for fixing ferrule to bristles. Second, for metal-to-metal and metal-to-non-metal bonding where solvent resistance and mechanical strength are required.

What is the mix ratio of Bristle Grip A?

The mix ratio is 100:10 by weight (Resin : Hardener). Use a digital scale for accuracy — the low hardener content means small errors significantly affect curing.

What is the pot life of Bristle Grip A?

Pot life is 25–35 minutes at 25°C for a 100 g mass. At higher temperatures, pot life shortens. Mix only what you can apply within 20 minutes in hot conditions.

What bond strength does Bristle Grip A achieve?

Minimum 60 kg/cm² at 25°C after 24 hours of cure. Full strength and solvent resistance develop over 7 days.

Is Bristle Grip A solvent resistant?

Yes, Bristle Grip A offers excellent solvent resistance, which is critical for paint brush manufacturing where brushes are cleaned with thinners and solvents during production.

What is the price of Bristle Grip A 5.5kg?

The 5.5kg kit (5kg resin + 0.5kg hardener) is priced at ₹2,537 (₹461 per kg). Contact us on WhatsApp at +91 8595955752 for stock availability.

How is Bristle Grip A different from regular Bristle Grip?

Bristle Grip A is a lower-viscosity (300–500 mPa·s) modified version of the standard Bristle Grip (650–850 mPa·s). The lower viscosity allows better penetration into bristle bundles and easier mixing. Both use a 100:10 ratio but Bristle Grip A has a shorter pot life (25–35 min vs 40–55 min) and lower bond strength (60 vs 80 kg/cm²).

09Pricing

Price & Availability

₹2,537 per 5.5 kg kit (incl GST)

₹461 per kg — competitive for a specialised industrial epoxy bonding system

Price valid until March 31, 2027. Includes 5 kg resin + 0.5 kg hardener in the correct 100:10 ratio. 33 kg bulk packs available on request — WhatsApp for the current bulk rate and stock position.

UPI, bank transfer, or credit card invoice via Razorpay link. No COD. GST invoice provided. For enquiries, WhatsApp Jobin directly.

We ship PAN India from our Ghaziabad warehouse — typically 2-5 business days via Delhivery, Blue Dart, or surface transport for bulk. Orders before 12 PM go out same day. All sales are final; see our refund policy. For buyers in Delhi NCR, the Delhi dispatch guide and the Ghaziabad dispatch guide cover the fastest dispatch and warehouse pickup options.
